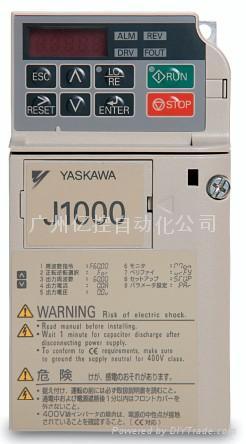

(new! )Yaskawa J1000 series-small type

Model No.︰CIMR-J1000
Brand Name︰Yaskawa
Country of Origin︰Japan
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 13 Related Items
Prev12345Next

Product Description
J1000 Drive

The J1000 is a world-class compact variable frequency drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality.

Great things come in small packages!

Specifications and Features for J1000 Drive




In our pursuit to create drives optimized for variable speed needs in compact applications, the J1000 is the solution. This micro-drive is simple andreliable with even higher quality. Demand continues to increase for a compact shaft turner with hassle-free maintenance. Yaskawa drives haveearned a reputation for high performance, high functionality, and high quality.

Performance Features
  • Ratings:
    1/8 to 3 HP at 200-240 VAC 1-ph
    1/8 to 5 HP at 200-240 VAC 3-ph
    1/2 to 7.5 HP (ND) at 380-480 VAC 3-ph
  • Overload Capacity:
    150% for 60 sec. (Heavy Duty)
    120% for 60 sec. (Normal Duty)
  • Control Methods: V/f Control
  • DC injection braking, ramp to stop
  • Electronic reversing
  • Adjustable accel/decel: 0.0 to 6000.0 seconds
  • Controlled speed range: 40:1
  • Speed Regulation:
    ± 0.5 to 1% with slip compensation
  • Displacement power factor: 0.98
  • Output frequency: 0 to 400 Hz
  • Frequency resolution:
    0.01 Hz with digital reference
    0.06 / 60 Hz with analog reference
  • Frequency accuracy:
    0.01% with digital command
    0.5% with analog command
  • Volts / hertz ratio: infinitely adjustable pattern
  • DC Injection braking: adjustable amplitude,
    duration, current limited
  • Torque boost: full range, auto
  • Power loss ride-thru: 0.5 sec.
  • Speed search
  • Auto restart
  • 2 Critical frequency rejection settings
  • Slip Compensation
Protective Features
  • Current limit, stall prevention during
    accel, decel, and run
  • Motor and drive overload
  • Over voltage prevention function
  • Instantaneous over current
  • Short circuit
  • Under voltage
  • Heatsink overheat
  • Ground fault protection
  • Over/under torque
  • Short circuit current rating: 30KAIC RMS
Options
  • Dynamic Braking resistor (external)
  • Remote LED Operator w/ copy function
  • Modbus 232/422/485 Communications
  • Analog Potentiometer Card
  • DriveWizardTM Plus
  • DIN rail mounting kit
  • Y-Stick Copy Unit
Design Features
  • 16-bit microprocessor logic
  • Digital keypad operator, 5 digits
  • LED status display
  • Remote Mount Keypad Capability
  • 5 multifunction digital inputs
  • 1 multifunction digital output
  • Programmable form C output contact for
    customer use: 1A at 250 VAC or 30 VDC
  • 24 VDC control logic compatible with
    sourcing or sinking outputs (PNP or NPN)
  • Carrier frequency: 15 kHz max; swing PWM
  • 8 multi-speed settings plus jog speed
  • 1 Remote speed reference:
    0-10 VDC (20 kohms) or isolated
    4-20 mA (250 ohms)
  • Signal follower: bias and gain
  • Analog monitor output:
    0-10 VDC proportional to output
    frequency or output current
  • 133 parameters
  • Cooling fan controlled by drive run/stop
  • UL recognized electronic overload
  • MTBF: 28 years
  • Built-in Dynamic Braking Transistor
  • Protected Chassis
  • Side-by-Side mounting
  • Maintenance monitors
Service Conditions
  • Ambient service temperature:
    -10° to 50°C (+14° to 122°F)
  • Ambient storage temperature:
    -20° to 60°C (-4° to 140°F)
  • Humidity: to 95% non-condensing
  • Altitude: to 3300 ft; higher by derating
  • Service factor: 1.0
  • Input voltage: -15% to +10%
    200 to 240 VAC, 380 to 480 VAC
  • Input frequency: +/-5%; 50/60 Hz
  • Input phase sequence insensitive
Standards
  • UL 508C (Power Conversion)
  • CSA 22.2 No. 14-95
    (Industrial Control Equipment)
  • UL, cUL listed; CE marked
  • RoHS compliant
  • EN 50178 (LVD)
  • EN 50081-2, EN 50082-2 (EMC)
  • EN 61800-3
  • IEC 529, 146
  • FCC CFR 47 Part 15 Subpart B
    (w/ External Filter)



Min Order︰1
Ship Date︰ON STOCKS
